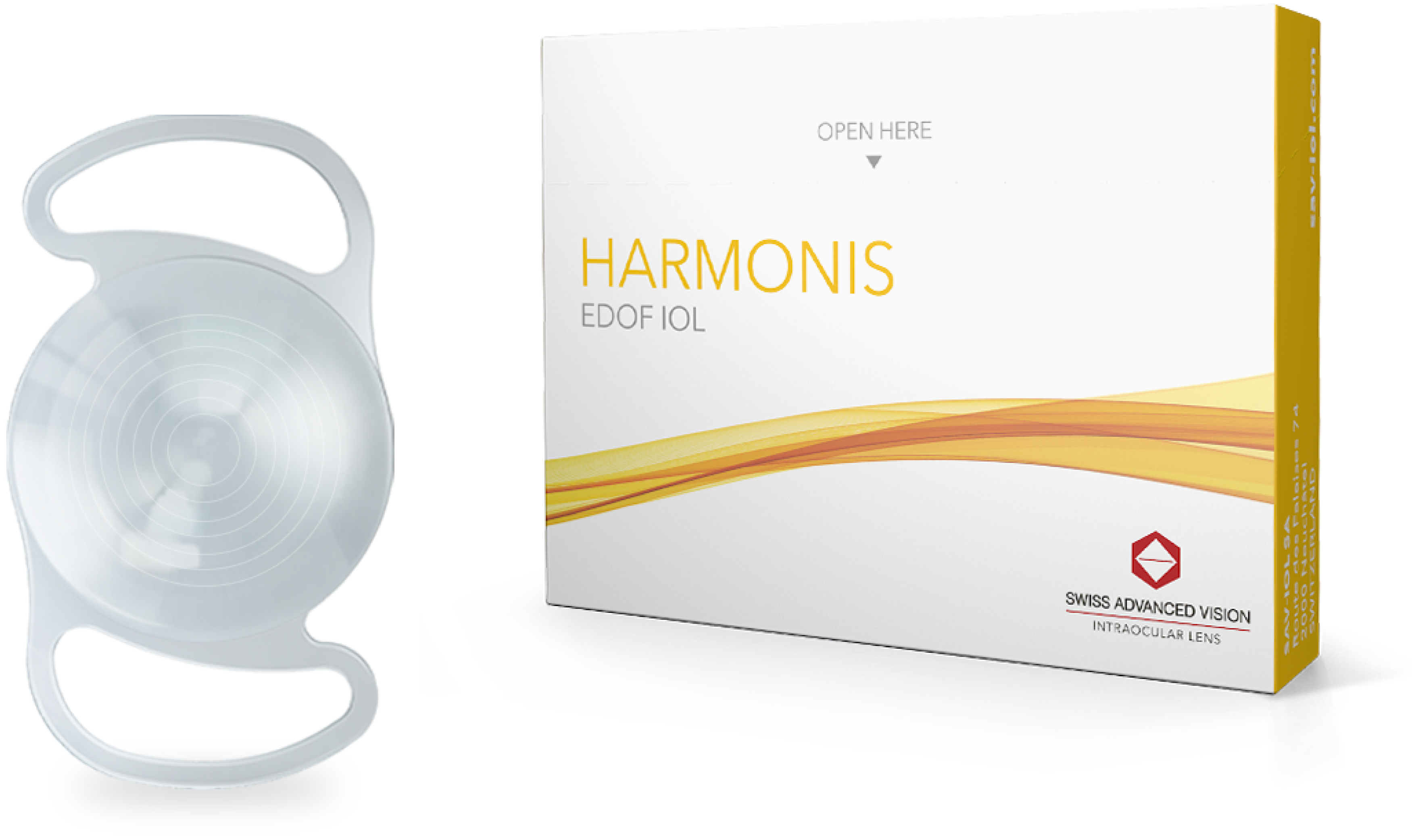

Harmonis

Swiss made EDOF IOL
CUSTOMIZABLE HYBRID DESIGN

Harmonis is a high-end customizable EDOF IOL designed to correct the vision post cataract surgery. Developed and manufactured entirely in Switzerland, it offers patients the possibility to configure the lens using a dedicated online configurator. In addition, Harmonis integrates the EDOF technology Instant Focus built around a refractive-diffractive optical surface.
As a result, patients can benefit from a customizable lens with an accommodation range that expands from the near vision towards the distance vision. The loss of light and potential dysphotopsia is substantially minimized providing an extra level of visual comfort. The closed loop haptic design enfolds the platform of Harmonis providing a stable fit in the capsular bag.

HIGH QUALITY CONTINUOUS VISION

Harmonis provides over 3,000 optical configurations to obtain the patient’s visual needs.
Lens model
HARMONIS
Harmonis 108M 10.8 mm
Harmonis 124M 12.4 mm
EDEN EDEN Toric
Lens type Pseudophakic single piece foldable IOL
Power range +5.0 to +30.0 D (by 0.5 D steps)
Add +2.5 to + 3.5 D (by 0.25 D Steps)
EDOF 1.0 to 2.0 D (by 0.5 D steps)
Optical diameter 6.0 mm
Optical design Hybrid multizone (refractive, diffractive, aspheric)
UV protection Cutoff at 370 nm
Material Hydrophilic acrylic (26 % water content)
Square edge design 360° (posterior face)
Haptic design Closed loop with 0° angulation
Packaging Plastic blister
Recommended injector size ≥ 2.2 mm
Important Notice

SAV-IOL does not provide injectors, medical advice, or calculation related to its lenses.
