Eden

Swiss made EDOF IOL
Premium Hybrid Design

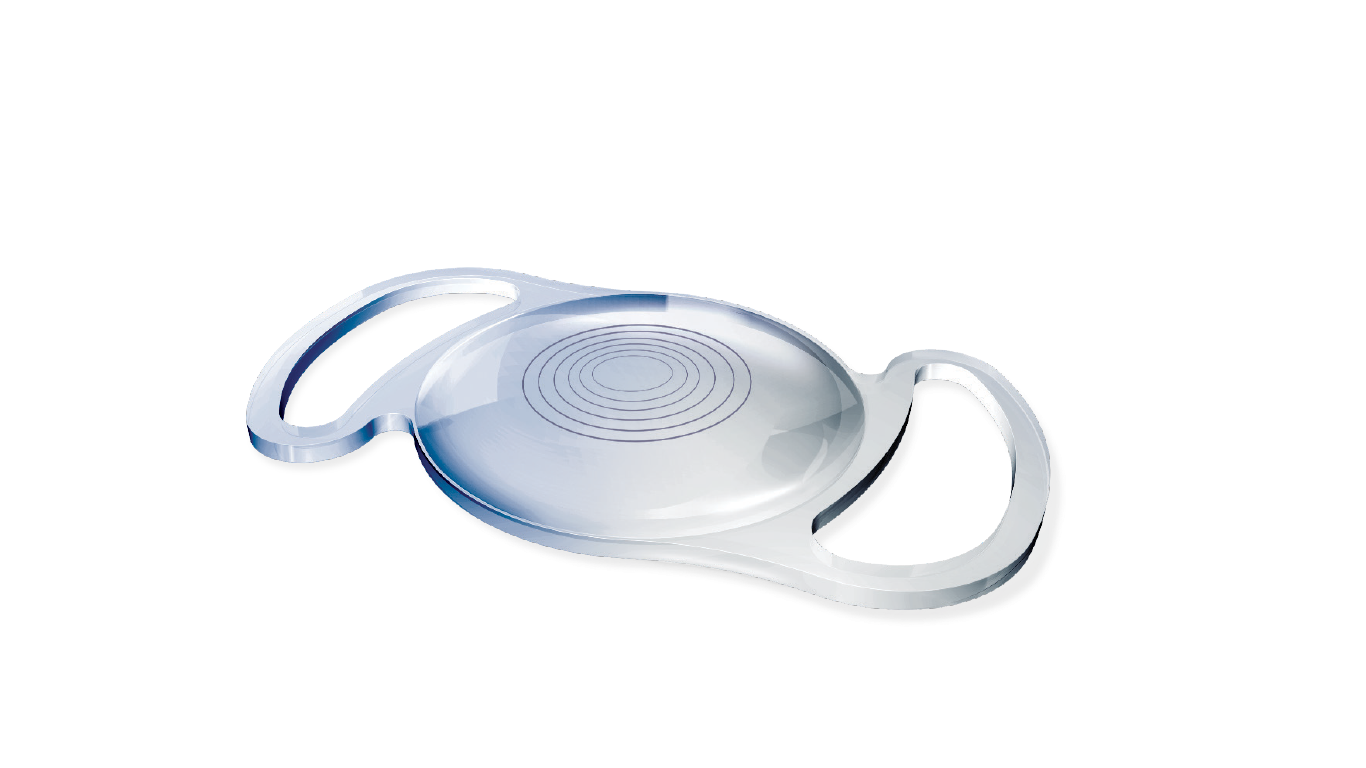

Eden is a premium hybrid EDOF IOL designed to correct the vision post cataract surgery. Developed and manufactured entirely in Switzerland, it offers patients an excellent continuous near to intermediate vision. To achieve such characteristics, Eden integrates the EDOF technology Instant Focus built around a refractive-diffractive optical surface.
As a result, patients can benefit from an accommodation range that expands from the near vision towards the distance vision with a substantially minimized loss of light and dysphotopsia providing an extra level of visual comfort. The closed loop haptic design enfolds the platform of Eden providing a stable fit in the capsular bag.

Patient
Brochure
IFU

OPTIMIZED FOR NEAR-INTERMEDIATE VISION

With substantially minimized loss of light and dysphotopsia
Lens model
EDEN
Eden 108M 10.8 mm
Eden 124M 12.4 mm
EDEN Toric
Eden 108T 10.8 mm
Eden 124T 12.4 mm
EDEN EDEN Toric
Lens type Pseudophakic single piece foldable IOL Pseudophakic single piece foldable IOL
Power range

+5.0 to +30.0 D (by 0.5 D steps)

SE: +5.0 to +30.0 D (by 0.5 D steps)
Cyl.: 1.00/1.50/2.25/3.00/3.75/4.50 D
Optical diameter 6.0 mm 6.0 mm
Optical design Hybrid multizone (refractive, diffractive, aspheric) Hybrid multizone (refractive, diffractive, aspheric)
Add/EDOF +3.0 D (nominal value) +3.0 D (nominal value)
UV protection Cutoff at 370 nm Cutoff at 370 nm
Material Hydrophilic acrylic (26 % water content) Hydrophilic acrylic (26 % water content)
Square edge design 360° (posterior face) 360° (posterior face)
Haptic design Closed loop with 0° angulation Closed loop with 0° angulation
Packaging Plastic blister Plastic blister
Recommended injector size ≥ 2.2 mm ≥ 2.2 mm
Important Notice

SAV-IOL does not provide injectors, medical advice, or calculation related to its lenses.
