Lucidis

Swiss made EDOF IOL
ADVANCED REFRACTIVE DESIGN

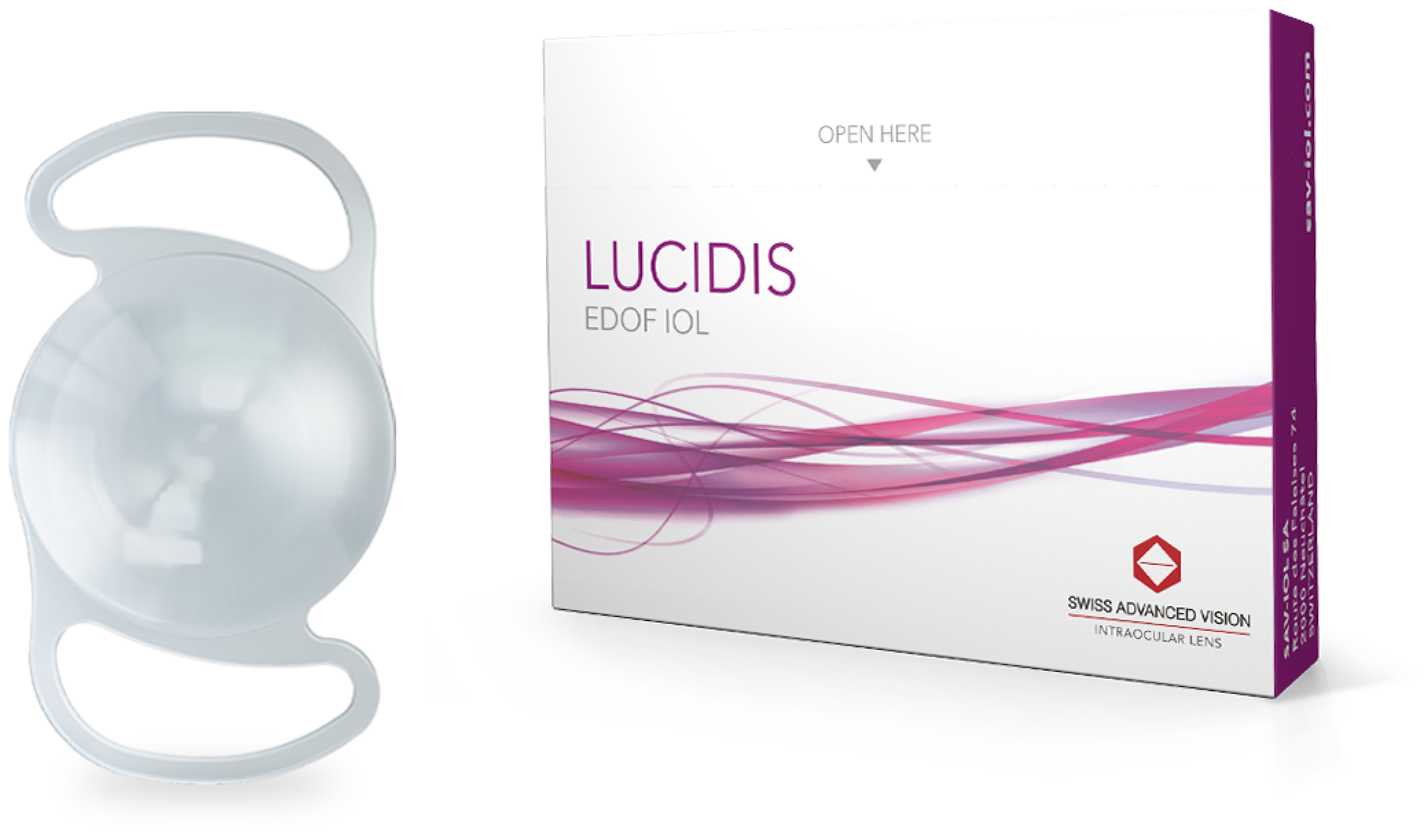

Lucidis is an advanced refractive EDOF IOL designed to correct the vision post cataract surgery. Developed and manufactured entirely in Switzerland, it offers patients an excellent balance between a wide visual accommodation range and a high quality of vision. To achieve such characteristics, Lucidis integrates the EDOF technology Instant Focus built around a refractive optical surface.
As a result, the loss of light and dysphotopsia remains within close range of a monofocal lens. In addition, the visual accommodation expands from the near vision continuously up to the distance vision providing an extra level of visual comfort for the patient. The closed loop haptic design enfolds the platform of Lucidis providing a stable fit in the capsular bag.

Patient
Brochure
IFU

HIGH QUALITY CONTINUOUS VISION

Lucidis combines the benefits of both monofocal and multifocal lenses.
Lens model
LUCIDIS
Lucidis 108M 10.8 mm
Lucidis 124M 12.4 mm
LUCIDIS Toric
Lucidis 108MT 10.8 mm
Lucidis 124MT 12.4 mm
Lucidis Lucidis Toric
Lens type Pseudophakic single piece foldable IOL Pseudophakic single piece foldable IOL
Power range +5.0 to +30.0 D (by 0.5 D steps) SE: +5.0 to +30.0 D (by 0.5 D steps)
Cyl.: 1.00/1.50/2.25/3.00/3.75/4.50 D
Optical diameter 6.0 mm 6.0 mm
Optical design Multizone (refractive, aspheric) Multizone (refractive, aspheric)
Add/EDOF +3.0 D (nominal value) +3.0 D (nominal value)
UV protection Cutoff at 370 nm Cutoff at 370 nm
Material Hydrophilic acrylic (26 % water content) Hydrophilic acrylic (26 % water content)
Square edge design 360° (posterior face) 360° (posterior face)
Haptic design Closed loop with 0° angulation Closed loop with 0° angulation
Packaging Plastic blister Plastic blister
Recommended injector size ≥ 2.2 mm ≥ 2.2 mm
Important Notice

SAV-IOL does not provide injectors, medical advice, or calculation related to its lenses.
